Chain hoist

For heavy lifting and material handling in rough environments, our chain hoist offers a durable and reliable solution. The chain hoist is characterized by its silent run and long durability, even in very tough conditions. Ideal for safe and ergonomic lifting in rough environments.

Choose the product you want to lift

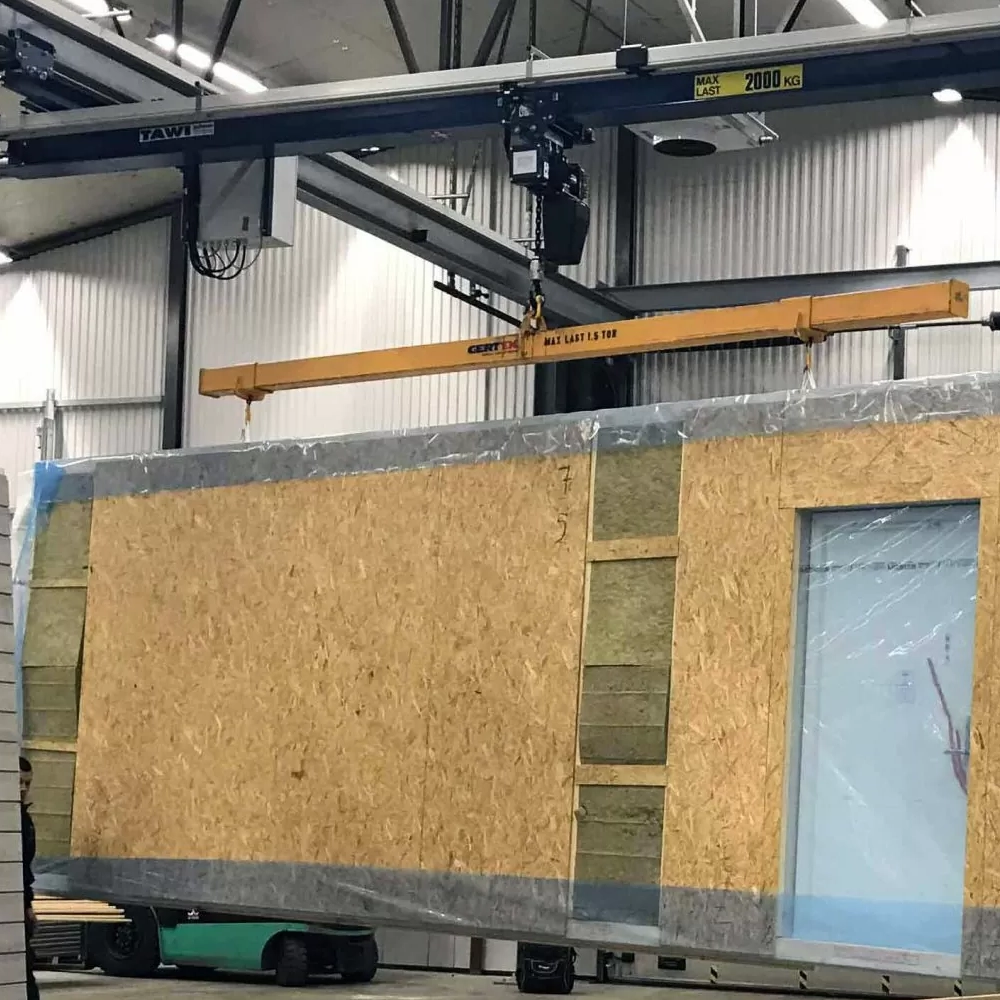

Chain hoist lifting heavy rolls Lifting large rolls with chain hoist chain hoist with customized tool lifting walls with chain hoist lifting walls with chain hoist

Chain hoist for heavy lifting

This reliable chain hoist for heavy lifting comes in several models, handling up to 1 600 kilos. Get in touch and we will guide you to the right model for your needs.

  • Lifting capacity: <2500 kg
  • IP-rating: IP65 (suitable for outdoor use)
  • Chain safety factor: min 8-times (FEM, 2m, ISO, M5)
  • 42 V low voltage control
  • Low-wear DC-spring-loaded brake
  • Minimum 1 600 operating hours with 40% duty cycle, 240 s/h (FEM: 2m, ISO M5)

Get a quote

Durable chain hoist for heavy loads

TAWI Chain Hoist is strong, durable and reliable. Available with tools for handling anything from sheets to engines or entire walls.

  • Quiet running with 3-step drive and helical gearing
  • No sensitive electronics minimises the risk of operational interruptions
  • Ergonomic control switch allows convenient and safe working
  • Maintenance is easy, quick and needs no special tools
  • Compact housing with low headroom
  • Remote control lets you lift sheets from a safe distance
  • Tooling options for all types of sheets
  • The hook can be rotated 360° to position your load exactly where you need it

Product Details

We offer 4 chain hoist models handling up to 1 600 kg. Choose model in the drop down to see specifications.

  • Information
    Lifting capacity320 kg
    Lifting height4 m
    Lifting speed8/2 m/min
    Voltage3x400V 50Hz
  • Information
    Lifting capacity400 kg
    Lifting height4 m
    Lifting speed8/2 m/min
    Voltage3x400V 50Hz
  • Information
    Lifting capacity800 kg
    Lifting height4 m
    Lifting speed8/2 m/min
    Voltage3x400V 50Hz
  • Information
    Lifting capacity1600 kg
    Lifting height4 m
    Lifting speed8/2 m/min
    Voltage3x400V 50Hz

Reliable chain hoist for heavy lifting

Need a hoist that can lift heavy and withstand rough conditions? Our chain hoist is reliable, durable and safe to use all the way from ATEX-classified facilities to outdoors environment.

TAWI chain hoist is easy to use, reliable and safe in operation, long-lasting and easy to maintain. The hoist is simple in its structure and does not contain any sensitive electronics, which minimises the risk of operational interruptions. An ergonomic control switch allows convenient and safe working. Push buttons placed in parallel increase the ease of operation. An external strain relief protects the control cable.

The chain hoist and the control switch both have protection class IP65, meaning that they are dust proof and protected against water jets. With its compact and robust design, the hoist is well suited for dusty environments as well as for outdoor operation.

This reliable chain hoist is used everywhere where process safety is important; in hard three-shift operations in automotive industry and other high production industries, in dusty or chemical aggressive environments, for outdoor use, and for extreme lifting heights. The safety factor of the load chain is at least 8 which reduces wear and tear and increases the service life.

Repair and maintenance is done very simply and quickly which makes the chain hoist very economical to maintain. Its high reliability minimises the risk of production downtime and potentially high downtime costs.

Need more info? Contact us here

Reach out to us anytime and we’ll be happy to help you.
Do you need an urgent response, please call us directly on +46 300 185 00 (8am-5pm, GMT+1)

i
Get in touch?

Please specify what you want to lift with measures and weight, size of working area, and lifting height to get as accurate a quote as possible.
